640456-4
Manufacturer:
TE Connectivity
Mfr.Part #:
640456-4
Datasheet:
Description:

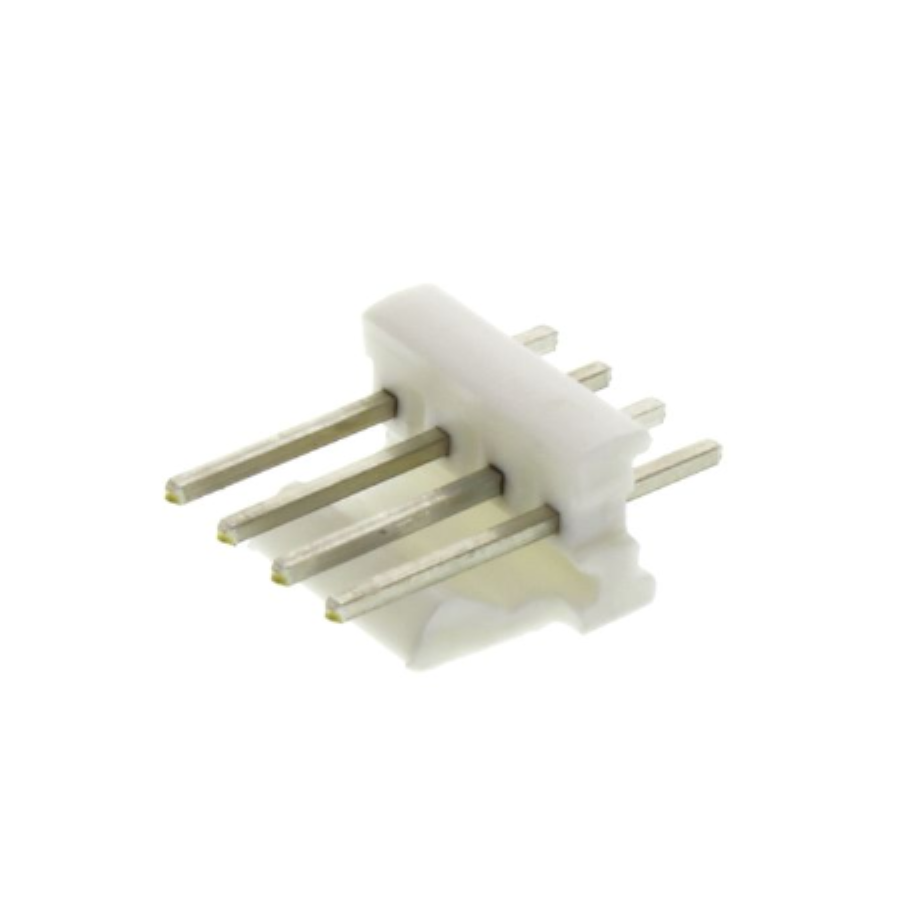

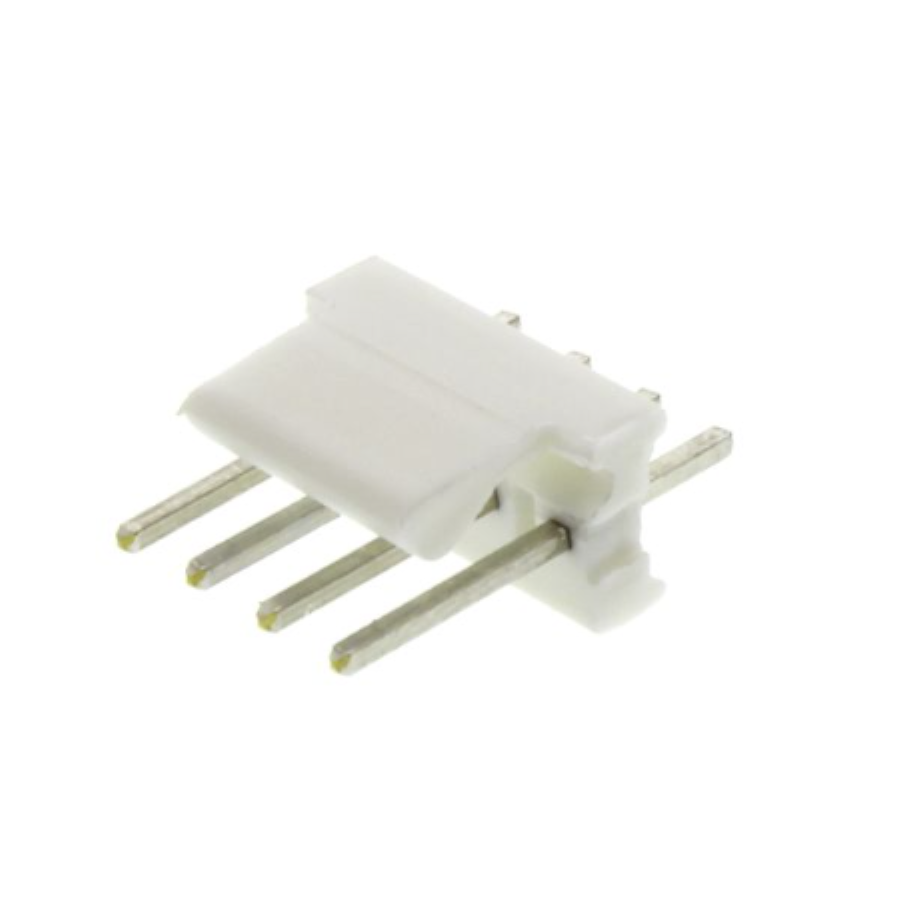

Headers and Wire Housings Through Hole Header Number of Positions:4 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Bag |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Copper Alloy |
| Pitch | 2.54 mm |
| Current Rating | 4 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Vertical |
| Lifecycle Status | Active |
| Color | White |
| Gender | Male |
| Number of Contacts | 4 |
| Mounting Style | Through Hole, Vertical |
| lead free status | Lead Free |
| operating temperature | 105 °C |
| rohs status | Compliant |
| reach svhc compliance | No SVHC |
| Connector Type | Header |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Housing Material | Polyester |
| size width | 5.71 mm |
| size length | 10.2 mm |
| size height | 7.87 mm |
| voltage rating ac | 250 V |
| elv compliant | Compliant |
| Housing Color | White |
| pin pitch | 2.54 mm |
| shrouded | No |
| Termination Post Length | 3.56 mm |
Stock: 32405
Distributors
pcbx
pcbxUnit Price$0.11885
Ext.Price$0.11885
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.11885 | $0.11885 |
| 10 | $0.10703 | $1.07030 |
| 50 | $0.09638 | $4.81900 |
| 100 | $0.08648 | $8.64800 |
| 500 | $0.07760 | $38.80000 |
| 1000 | $0.07426 | $74.26000 |
| 3000 | $0.07107 | $213.21000 |
| 5000 | $0.06801 | $340.05000 |
